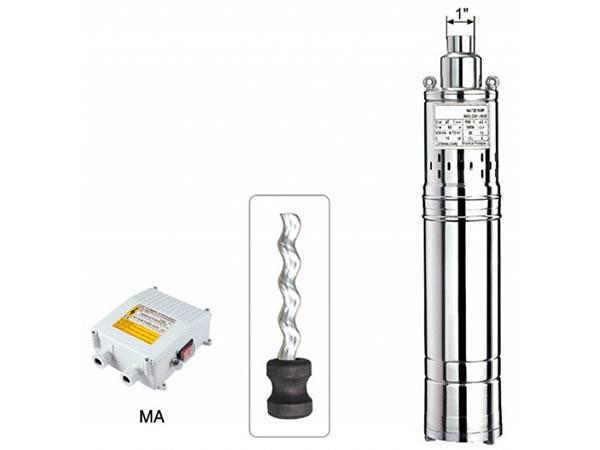

4DWG Stainless Steel Deep Well Screw Pump
Application
- For water supply from wells or reservoirs.
- For domestic, civil and industrial applications.
- For garden use and irrigation.
Operation conditions for 4DWG Stainless Steel Deep Well Screw Pump
- Maximum sand content: 3%.
- Maximum immersion: 15 m.
- Minimum well diameter: 4".
4DWG Stainless Steel Deep Well Screw Pump Features
- Three-phase: 380V-415V/50Hz.
- Single-phase: 220V-240V/50Hz.
- Equip with start control box or digital auto-control box.

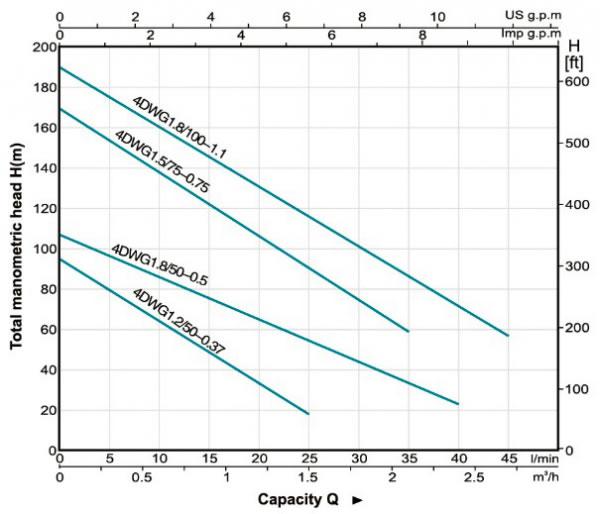

| Model | P2 | Capacity (m ³ /h ) | Head (m) | Outlet (inch) | Speed (1/min) | Dimension(mm) | |||
| 1~ 220V/240V |
3~ 380V/415V |
KW | HP | øD | L | ||||
| 0.37 | 0.5 | 1.2 | 50 | 1" | 2850 | 96 | 540 | ||
| 0.5 | 0.7 | 1.8 | 50 | 1" | 2850 | 96 | 560 | ||
| 0.55 | 0.75 | 1.5 | 60 | 1" | 2850 | 96 | 580 | ||
| 0.75 | 1 | 1.2 | 100 | 1" | 2850 | 96 | 620 | ||
| 1.1 | 1.5 | 1.5 | 120 | 1" | 2850 | 96 | 680 | ||
| Components | Material |
| Delivery casing | AISI 304 SS |
| Strainer | AISI 304 SS |
| Motor External Casing | AISI 304 SS |
| Top Cover | Cast-Iron G20 UNI5007 |
| Bottom Support | AISI 304 SS |
| Mechanical Seal | Special seal for deep well (carbon-SIC/TC) |
| Shaft | AISI 304 SS-C 1045 |
| Bearing | NSK |
LEO is a listed company in China (stock code 002131), LEO is a leading deep well screw pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, stainless steel pumps, deep well water pumps with custom solutions. LEO deep well pumps can meet you any requires in domestic pumping systems.
