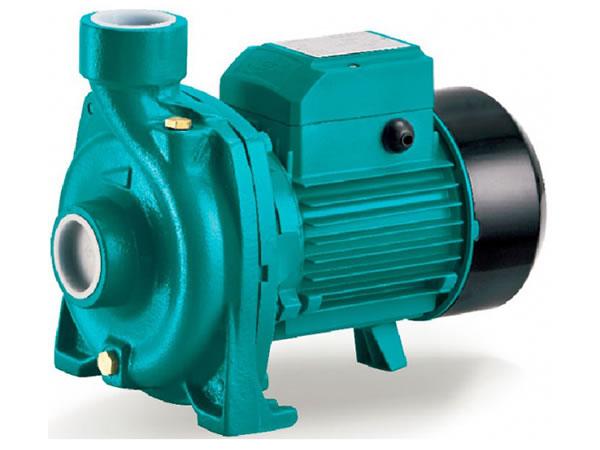

XGm Centrifugal Pump

XGm Centrifugal Pump

Centrifugal Pump Application
- Centrifugal pump can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
- Suitable for industry use and urban water supply, pressure boosting for high buildings and fire fighting, garden irrigation, long-distance water transferring, heating ventilation and air controlling, circulation and pressure boosting for cold and hot water, and supporting equipment etc.

Centrifugal Pump Features
- Cast iron pump body and support under special anti-rust treatment.
- AISI 304 shaft.
- Max. liquid temperature: +40℃.
- Max. suction: +8m.

XGm Centrifugal Pump Motor Features
- C&U bearing.
- Motor with cooper winding.
- Built-in thermal protector for single phase motor.
- Insulation class: F.
- Protection class: IPX4.
- Max. ambient temperature: +40℃.

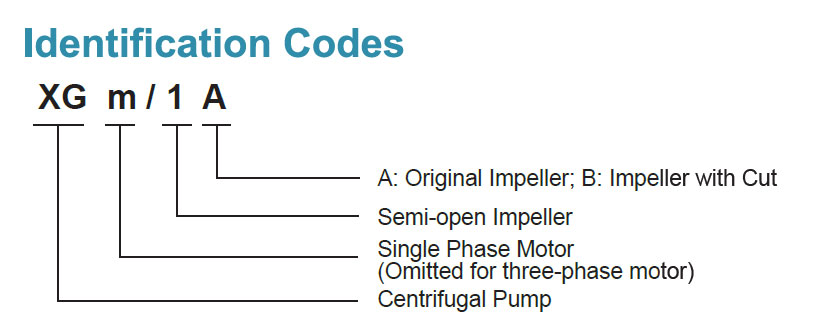

Identification Codes
Technical Data of XGm Centrifugal Pump
MODEL POWER Q(m³/h) 0 2.4 4.2 6 7.8 9.6 11.4 13.2 14.7
Single Phase Three Phase KW HP Q(l/min) 0 40 70 100 130 160 190 220 245
XGm/1A XG/1A 0.75 1 H(m) 17.5 16 14.5 13 11 9 6.5 3.5 1
XGm/1B XG/1B 0.6 0.8 14 12.5 11 9.5 7.5 5.5 3 ˗ ˗
XGm Centrifugal Pump Hydraulic Performance Curves

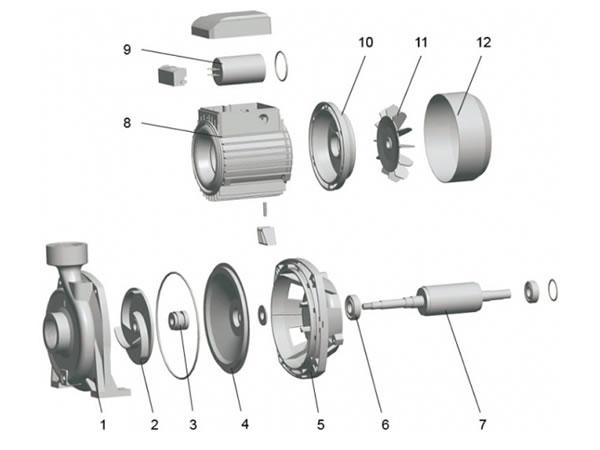

Material Table of XGm Centrifugal Pump
No. Part Material
1 Pump body HT 200
2 Impeller Brass
3 Mechanical seal Carbon/Ceramic
4 Bracket Cover AISI 304
5 Support ZL 102
6 Bearing
7 Rotor
8 Stator
9 Capacitor
10 Rear cover ZL 102
11 Fan PP
12 Fan Cover PP

LEO is a listed company in China (stock code 002131), LEO is a leading centrifugal pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, single phase pumps, three phase pumps, deep well pumps with custom solutions. LEO centrifugal water pumps can meet you any requires in domestic pumping systems.
