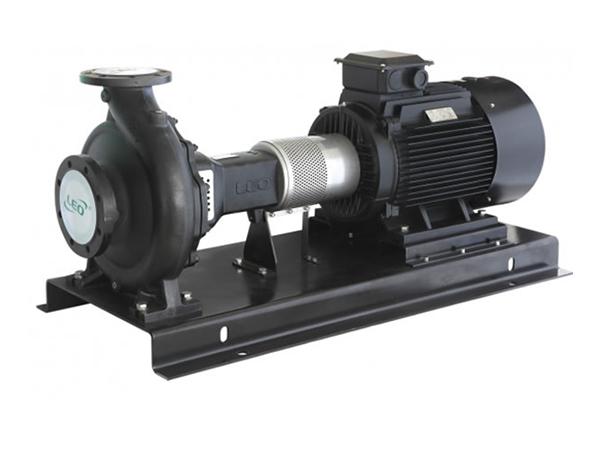

LEN End Suction Centrifugal Pump
LEN End Suction Centrifugal Pump Features
- PH value: 4 ~10
- Liquid temperature: 0 ~ 90℃
- Power range: 2.2 ~ 30 kW
- Max. head: 36.5 m
- Max. operation pressure: 16 bar
- Altitude: up to 1,000 m
LEN End Suction Centrifugal Pump Motor Features
- IE 2 motor (IE 3 motor on request)
- Insulation class: F
- Protection class: IP 55
| No. | Part | Material |
| 1 | Pump body | Cast iron |
| 2 | Impeller | Cast iron |
| 3 | Mechanical seal | Carbon/Silicon carbide |
| 4 | Pump cover | Cast iron |
| 5 | Bearing base | Cast iron |
| 6 | Pump shaft | AISI 304/Steel |
| 7 | Coupling | |
| 8 | Motor | |
| 9 | Base plate | Iron |

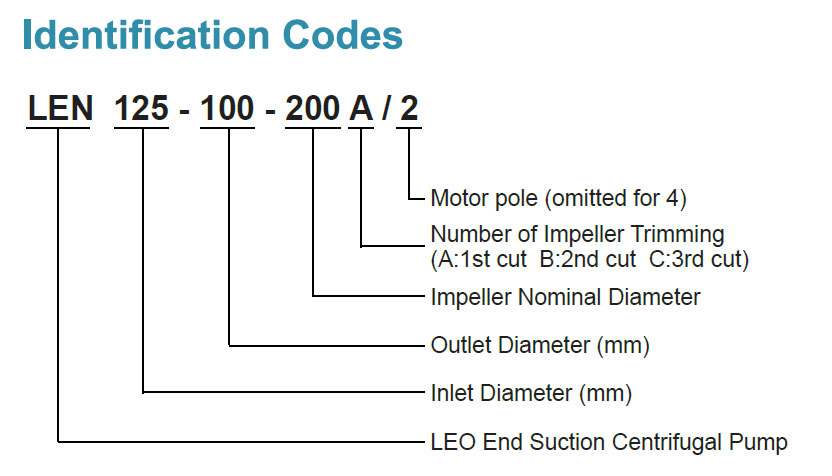

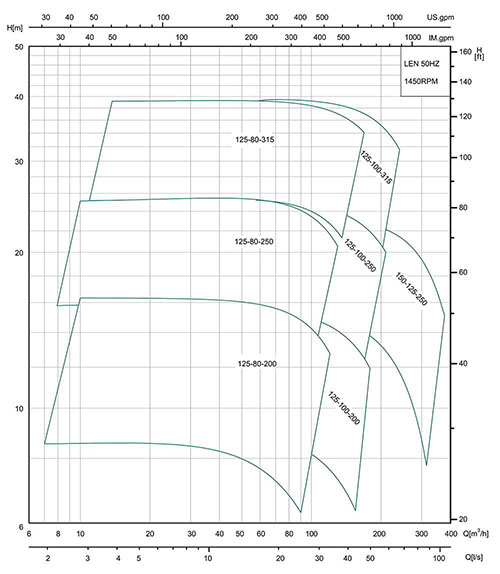

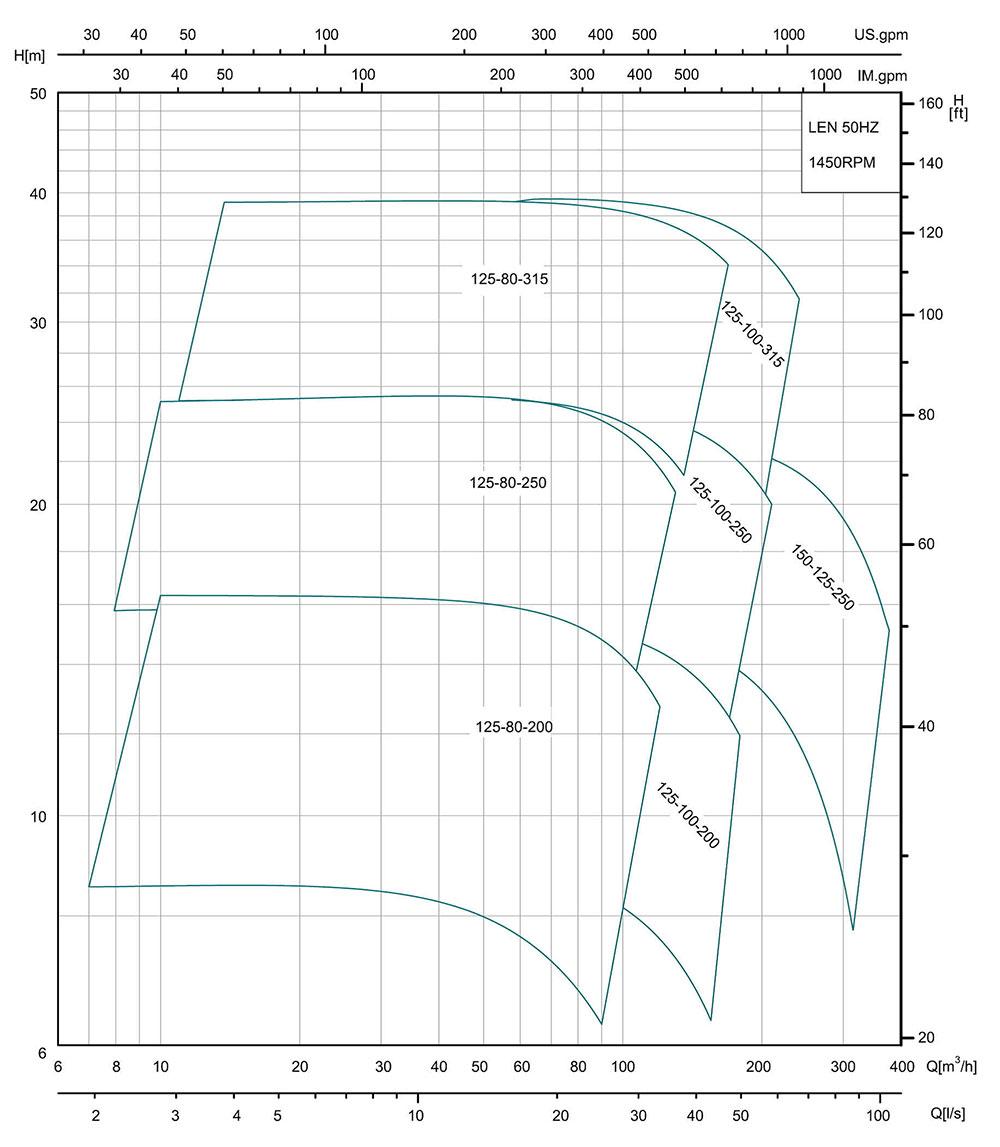

| Model | Power (kW) | Rated Flow (m3/h) | Rated Head (m) | Max. Flow (m3/h) | Max. Head (m) | NPSH (m) | |
| LEN125-80-200 | 5.5 | 100 | 14.5 | 120 | 70 | 2 | |
| LEN125-80-200A | 5.5 | 95 | 13 | 123.5 | 66.5 | 2 | |
| LEN125-80-200B | 4 | 90 | 11.5 | 108 | 63 | 2 | |
| LEN125-80-200C | 4 | 85 | 10.5 | 110.5 | 59.5 | 2 | |
| LEN125-80-200D | 3 | 82 | 9.5 | 98.5 | 57.4 | 2 | |
| LEN125-80-200E | 2.2 | 70 | 7.5 | 91 | 49 | 2 | |
| LEN125-100-200 | 7.5 | 150 | 13.5 | 180 | 105 | 2.8 | |
| LEN125-100-200A | 7.5 | 145 | 12 | 188.5 | 101.5 | 2.3 | |
| LEN125-100-200B | 5.5 | 140 | 10.5 | 168 | 98 | 2.3 | |
| LEN125-100-200C | 5.5 | 135 | 9.5 | 175.5 | 94.5 | 2.3 | |
| LEN125-100-200D | 4 | 130 | 7 | 156 | 91 | 2.3 | |
| LEN125-80-250 | 11 | 100 | 22.5 | 130 | 70 | 2 | |
| LEN125-80-250A | 11 | 96 | 20.5 | 125 | 67.2 | 2 | |
| LEN125-80-250B | 7.5 | 90 | 18 | 117 | 63 | 2 | |
| LEN125-80-250C | 7.5 | 85 | 16 | 110.5 | 59.5 | 2 | |
| LEN125-80-250D | 5.5 | 82 | 15 | 98.5 | 57.4 | 2 | |
| LEN125-80-250E | 5.5 | 78 | 14 | 101.5 | 54.6 | 2 | |
| LEN125-100-250 | 15 | 160 | 21 | 208 | 112 | 2 | |
| LEN125-100-250A | 15 | 154 | 19 | 200 | 107.8 | 2 | |
| LEN125-100-250B | 11 | 146 | 17.5 | 190 | 102.2 | 2 | |
| LEN125-100-250C | 11 | 140 | 16 | 182 | 98 | 2 | |
| LEN125-100-250D | 11 | 135 | 14.5 | 175.5 | 94.5 | 2 | |
| LEN125-100-250E | 7.5 | 130 | 13 | 156 | 91 | 2 | |
| LEN125-100-250F | 7.5 | 128 | 12 | 166.5 | 89.6 | 2 | |
| LEN150-125-250 | 22 | 290 | 19 | 377 | 203 | 3.5 | |
| LEN150-125-250A | 18.5 | 280 | 17 | 336 | 196 | 3.5 | |
| LEN150-125-250B | 18.5 | 270 | 15.5 | 351 | 189 | 3.5 | |
| LEN150-125-250C | 15 | 256 | 14 | 333 | 179.2 | 3.5 | |
| LEN150-125-250D | 15 | 250 | 12.5 | 325 | 175 | 3.5 | |
| LEN150-125-250E | 11 | 242 | 11 | 315 | 169.4 | 3.5 | |
| LEN125-80-315 | 22 | 130 | 36 | 169 | 91 | 2 | |
| LEN125-80-315A | 18.5 | 125 | 32 | 162.5 | 87.5 | 2 | |
| LEN125-80-315B | 15 | 122 | 29 | 146.5 | 85.4 | 2 | |
| LEN125-80-315C | 15 | 116 | 26.5 | 151 | 81.2 | 2 | |
| LEN125-80-315D | 15 | 112 | 24 | 145.5 | 78.4 | 2 | |
| LEN125-80-315E | 11 | 106 | 22 | 138 | 74.2 | 2 | |
| LEN125-100-315 | 30 | 185 | 35 | 240.5 | 129.5 | 2.2 | |
| LEN125-100-315A | 22 | 178 | 30.5 | 213.5 | 124.6 | 2.2 | |
| LEN125-100-315B | 22 | 172 | 28 | 223.5 | 120.4 | 2.2 | |
| LEN125-100-315C | 18.5 | 166 | 28 | 199 | 116.2 | 2.2 | |
| LEN125-100-315D | 18.5 | 162 | 24 | 210.5 | 113.4 | 2.2 | |
| LEN125-100-315E | 15 | 158 | 22 | 205.5 | 110.6 | 2.2 |
LEO is a listed company in China (stock code 002131), LEO is a leading end suction centrifugal pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering commercial water pumps, submersible pumps, sewage pumps with custom solutions. LEO end suction water pumps can meet you any requires in commercial pumping systems.
