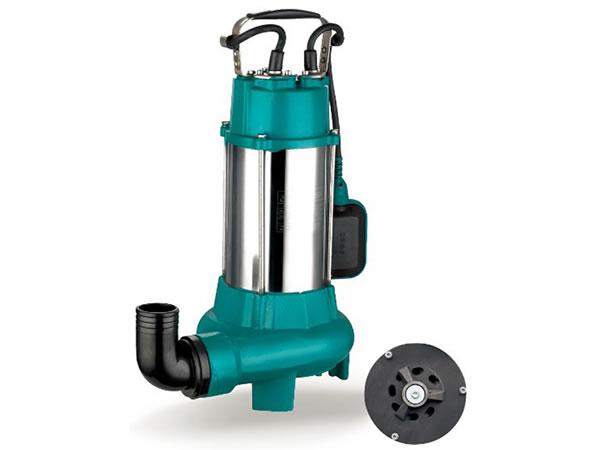

XSP-ID 1.5HP Stainless Steel Submersible Sewage Pump
Stainless Steel Submersible Pump Application
- Wastewater drainage in factories, construction sites and commercial facilities.
- Drainage system in municipal sewage treatment plants.
- Drainage station in residential quarters.
- Municipal projects.
- Methane pools and field irrigation in countryside.
Stainless Steel Submersible Pump Features
- Max. immersion depth: 5m.
- Max. liquid temperature: +40℃.
- Liquid pH value: 4-10.
- Liquid Kinematic viscosity: 7x10-7 ~ 23x10-6 m2/s.
- Max. liquid density: 1.2x103 kg/m3.
Stainless Steel Submersible Pump Motor Features
- Copper winding.
- Built-in thermal protector.
- Stainless steel welded shaft.
- Insulation class: B.
- Protection class: IP68.

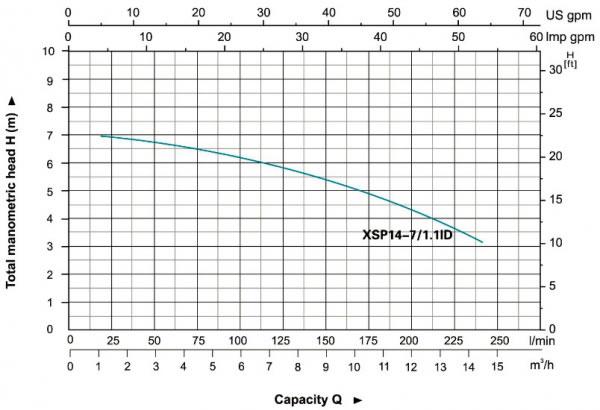

| Model | Power | Outlet diameter (mm) | Voltage (V/Hz) | Max. flow (l/min) | Max. head (m) | Max. dia. of particle (mm) | GW (kgs) | Packing size (mm) | Quantity (PCS/20'TEU) | |
| KW | HP | |||||||||
| 1.1 | 1.5 | 50 | 220/50 | 233 | 7 | 22.5 | 24 | 530x295x245 | 765 | |

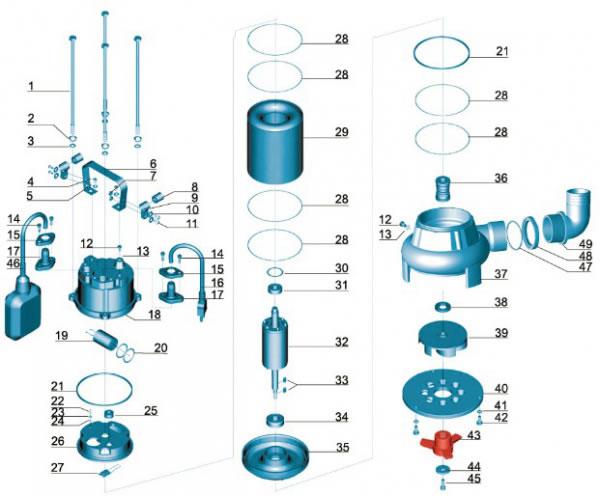

| No. | Part | Material | No. | Part | Material |
| 1 | Bolt | Stainless Steel | 26 | Upper Cover | HT200 |
| 2 | Stretching washer | Stainless Steel | 27 | Thermal Protector | |
| 3 | Washer | Stainless Steel | 28 | O-ring | NBR |
| 4 | Bolt | Stainless Steel | 29 | Stator | |
| 5 | Washer | Stainless Steel | 30 | Wave Washer | 65Mn |
| 6 | Handle | Stainless Steel | 31 | Ball Bearing | |
| 7 | Nut | Stainless Steel | 32 | Rotor | |
| 8 | Protector | NR | 33 | Key | Steel |
| 9 | Cable Presser | Stainless Steel | 34 | Ball Bearing | |
| 10 | Washer | Stainless Steel | 35 | Lower Cover | HT200 |
| 11 | Screw | Stainless Steel | 36 | Mechanical Seal | Carbon/Ceramic |
| 12 | Bolt | Stainless Steel | 37 | Pump Body | HT200 |
| 13 | O-ring | NBR | 38 | Oil Seal | |
| 14 | Screw | Stainless Steel | 39 | Impeller | HT200 |
| 15 | Flange | Stainless Steel | 40 | Shredding Ring | 40Cr |
| 16 | Cable | 41 | Washer | Stainless Steel | |
| 17 | Cable Protector | CR | 42 | Screw | Stainless Steel |
| 18 | Capacitor Cover | HT200 | 43 | Radial Cutter | 40Cr |
| 19 | Capacitor | 44 | Washer | 40Cr | |
| 20 | O-ring | NBR | 45 | Screw | Stainless Steel |
| 21 | Rubber Washer | NBR | 46 | Float Switch | |
| 22 | Screw | CuZn40 | 47 | O-ring | NBR |
| 23 | Stretching washer | 65Mn | 48 | Connection Nut | ABS |
| 24 | Washer | CuZn40 | 49 | Connector | ABS |
| 25 | Cable Holder | NBR |
LEO is a listed company in China (stock code 002131), LEO is a leading stainless steel submersible pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries, and is offering residential water pumps, sewage pumps, deep well water pumps with custom solutions. LEO stainless steel water pumps can meet you any requires in domestic pumping systems.
